Product Overview

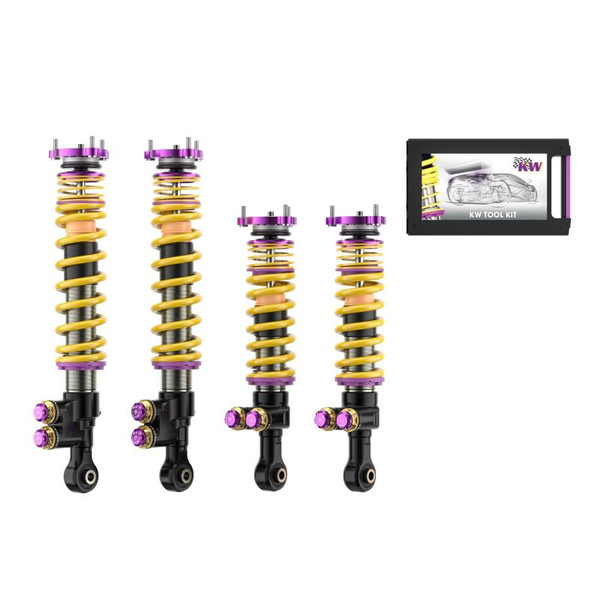

With the new KW V5 Clubsport coilover suspension, KW focuses on its successful motorsport suspension technology with KW Solid Piston Technology and modular design with damper valves connected in series. The KW V5 Clubsport assures precise and fast damping without delay. The shock absorbers and valves react directly, even with small spring travel, minimal steering movements, and minor road undulations. Every driving maneuver and input, such as those generated during braking, acceleration, steering, load changes, and undulations, are damped much more precisely. The KW Solid Piston dampers provide much more platform support to the chassis than conventional dampers and, depending on the vehicle allow for lower spring rates to be used. The KW V5 Clubsport with adjustable KW SPCLH-A (KW Solid Piston Compression Low- and Highspeed Adjustable) compression damping and KW SPRLH-A (KW Solid Piston Rebound Low- and Highspeed Adjustable) rebound damping offer significant added value: more sensitive damping, cavitation-free function, precise high-frequency damping, low-pressure gas range from 6 to 10 bar and low hysteresis. The valve units in the KW V5 Clubsport coilover suspension, which are built-in series with different valve spring types and main valves, offering the freedom to individually adjust the compression and rebound damping with 13 exact clicks (14 characteristic curves) each in the low- and high-speed range. The KW Solid Piston Technology can also be used to cover a large force range when designing the characteristic curves; all the more reason to enable a completely new type of harmonious damping. The KW V5 Clubsport coilovers feature our signature purple anodized KW Clubsport aluminum uniball solid top mounts for increased steering precision. Dial in a maximum or individual lowering within the tested adjustment range. Due to the dirt-resistant trapezoidal thread and the polyamide threaded ring, the continuous lowering can be adjusted quickly and easily.
This Part Fits:
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2018-2020 | Mercedes-Benz | AMG GT R | Base |
| 2020 | Mercedes-Benz | AMG GT R Pro | Base |
